# Alemba Service Manager On-Premise Architecture

Below are the main architecture diagrams you will need in planning your ASM System.

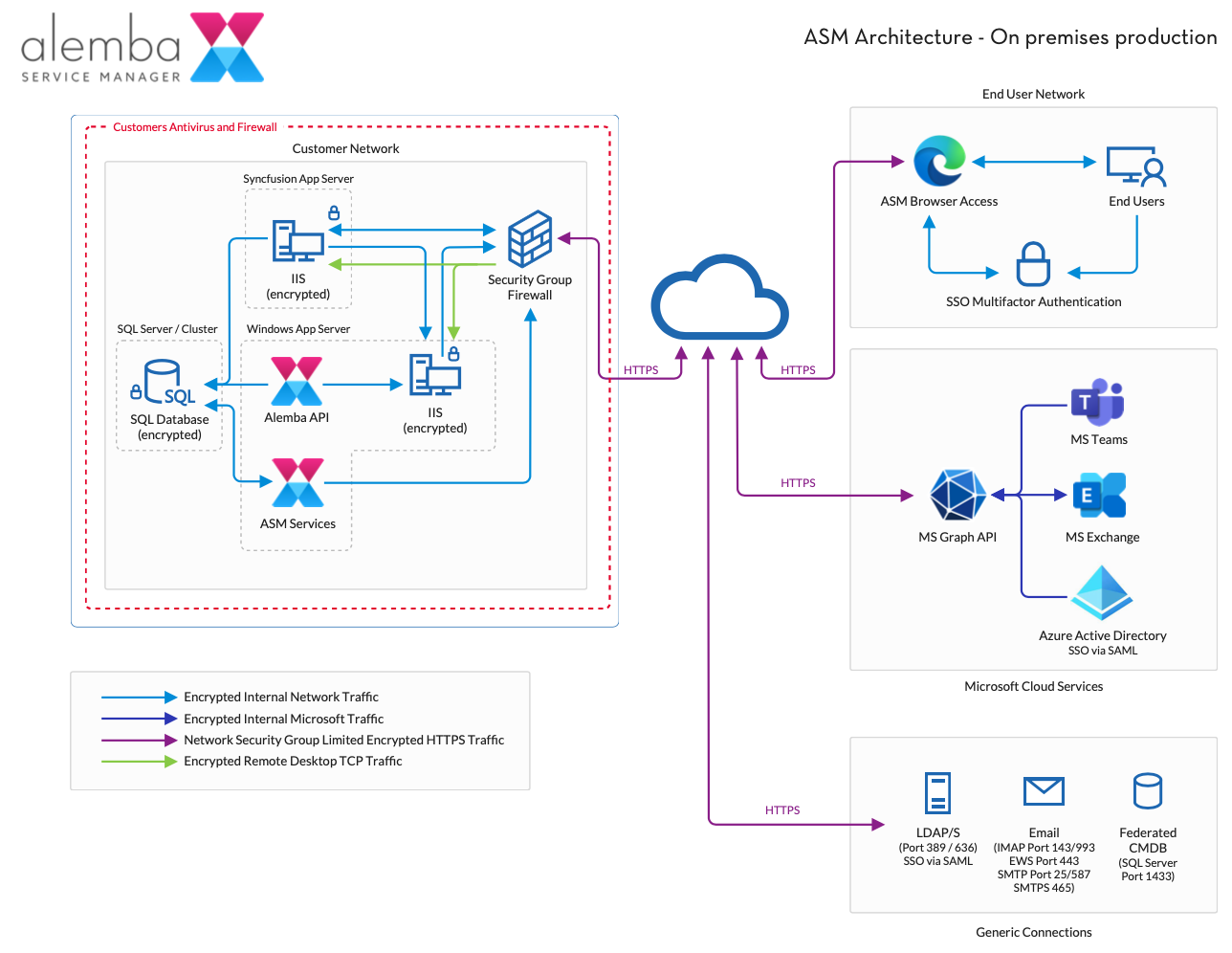

<figure><img src="https://content.gitbook.com/content/hlW9jKl7dcDggHAPhNU9/blobs/CdMAUjqe3LUIYCQeN37j/Screenshot%202023-08-25%20at%204.17.53%20PM.png" alt=""><figcaption><p>On Premise Production</p></figcaption></figure>

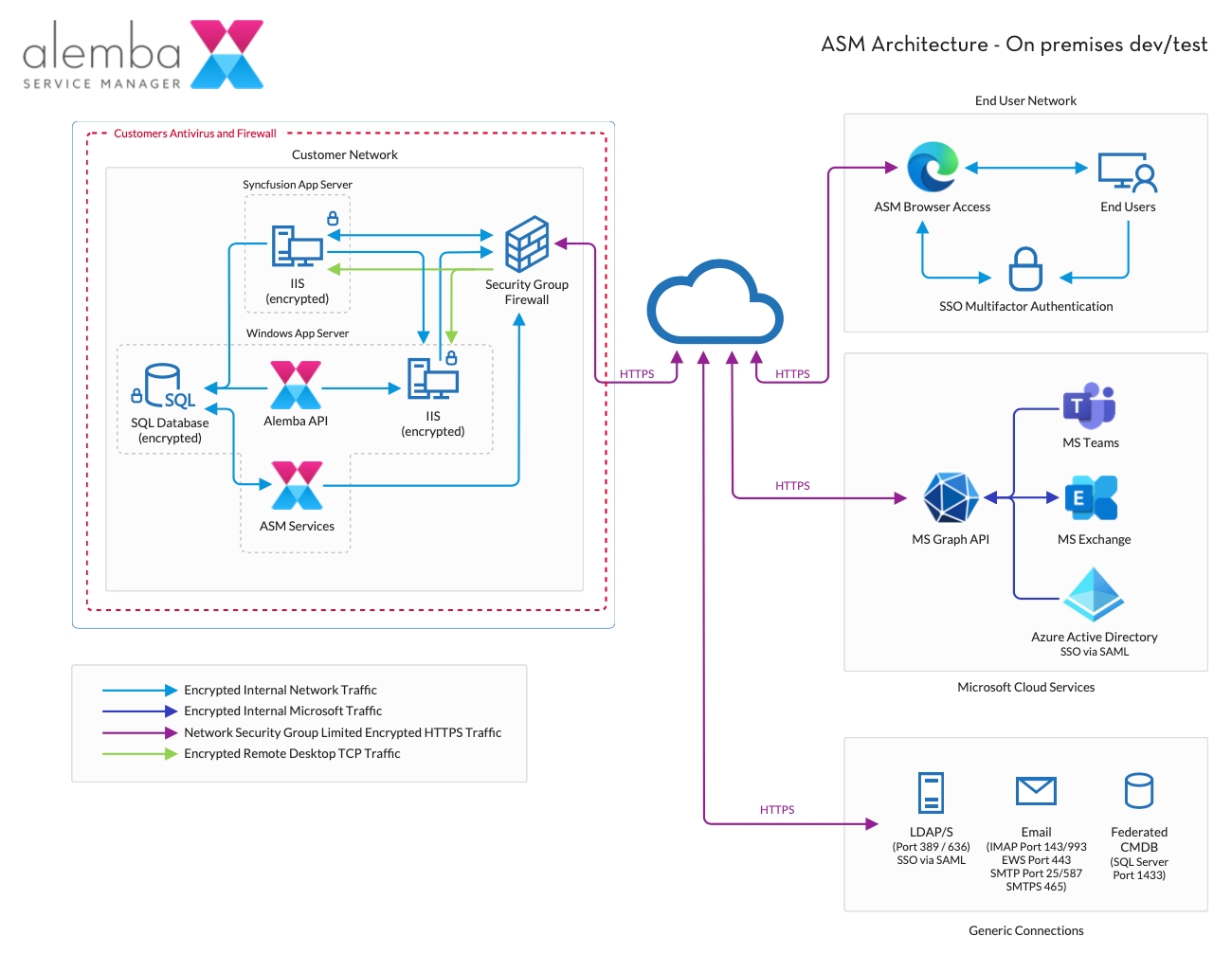

<figure><img src="https://content.gitbook.com/content/hlW9jKl7dcDggHAPhNU9/blobs/4TNgv7sgDIQEAHydTqh3/Screenshot%202023-08-25%20at%204.17.43%20PM.png" alt=""><figcaption><p>On Premise Dev/Test</p></figcaption></figure>

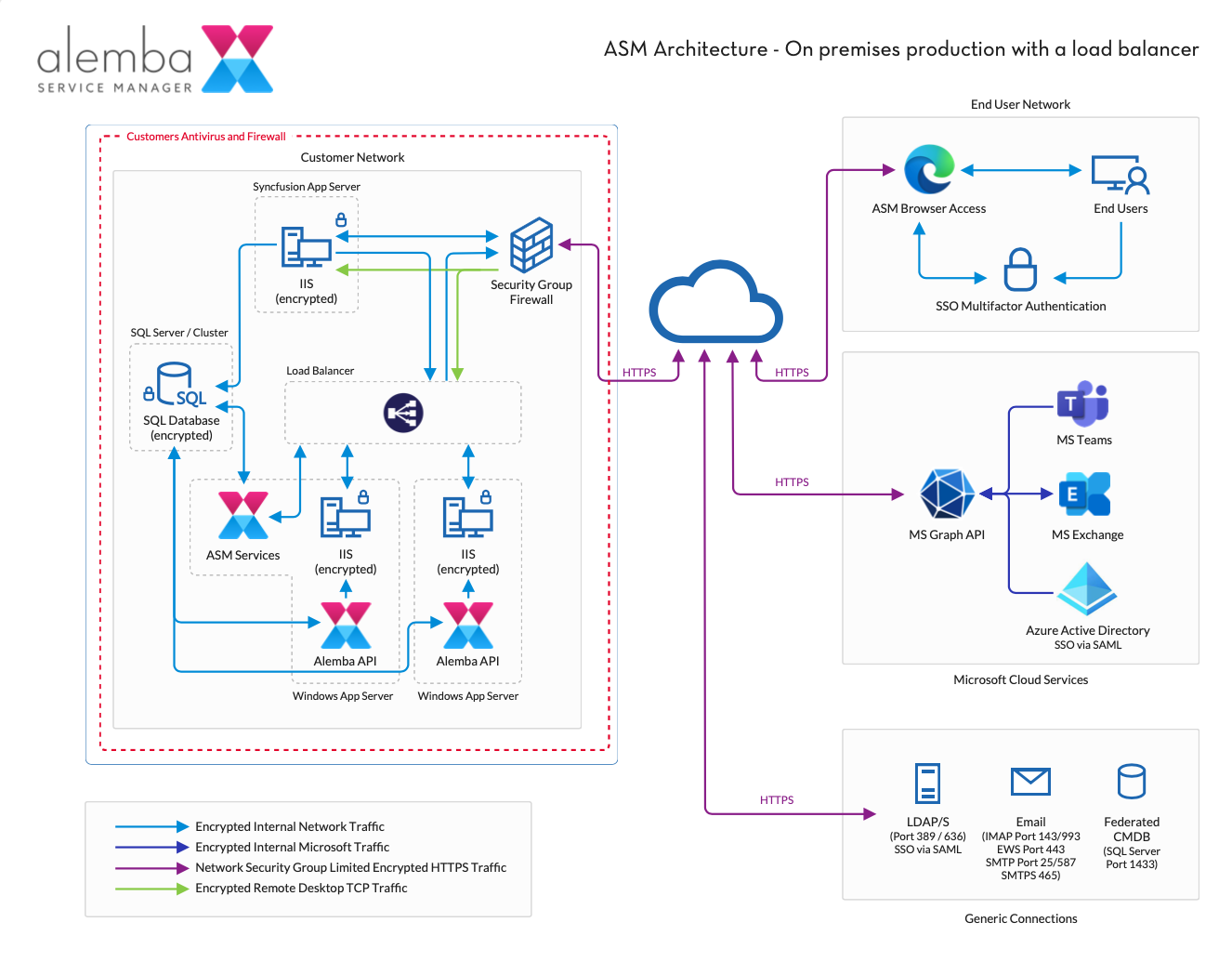

<figure><img src="https://content.gitbook.com/content/hlW9jKl7dcDggHAPhNU9/blobs/4CbdkArE0FCQ3hpEcdYx/Screenshot%202023-08-25%20at%204.17.30%20PM.png" alt=""><figcaption><p>On Premise Production with a Load Balancer</p></figcaption></figure>

## Downloadable PDF Files

{% file src="/files/AGrUJf8hASchQt9vsej5" %}

{% file src="/files/C33G0V7CUlCeEvRCnSP6" %}

{% file src="/files/8a8iQKyhlT92UvafGp5k" %}
