# Configuring external network access to ASM Depending on organizational security requirements, the recommended environment and security configurations may differ. The most common security recommendation is to create a demilitarized zone (DMZ) containing a reverse proxy server buffered by firewalls. {% hint style="warning" %} Work with your Network Administration teams to configure reverse proxy servers, DMZ, and IIS redirection. {% endhint %} We outline three DMZ scenarios, based on whether or not Windows Authentication is enabled on the ASM System within the secure network: * DMZ with a web server where ASM Core is installed. The ASM System within the secure network may / may not have Windows Authentication enabled. For more information, see [Option 1: Install a second ASM System on a web server in the DMZ.](#installsecondindmz) * DMZ with a reverse proxy server. The ASM System within the secure network has Windows Authentication disabled. For more information, see [Option 2: Set up a Reverse Proxy Server in the DMZ, Authentication Disabled.](#option2) * DMZ with a reverse proxy server. The ASM System within the secure network has Windows Authentication enabled. For more information, see [Option 3: Set up a Reverse Proxy Server in the DMZ, Authentication Enabled.](#option3) #### Ports to open in the firewalls | | HTTP | HTTPS | SQL | | ----- | ---- | ----- | ------------------ | | Ports | 80 | 443 | TCP 1433, UDP 1434 | ### Option 1: Install a second ASM System on a web server in the DMZ

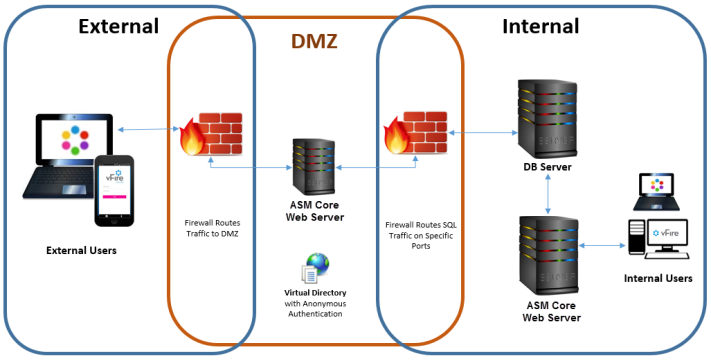

Internal network Install the primary ASM System on the internal server. You may choose to enable Windows Authentication or not; it has no effect on this configuration.

DMZ


Internal network	Install the primary ASM System on the internal server. You may choose to enable Windows Authentication or not; it has no effect on this configuration.
DMZ	Configure a second web server within the DMZ to act as a reverse proxy server. On this web server in the DMZ: Create an ASM System that points to the same database as the internal ASM System. During system creation, when prompted to update the database, select No In the virtual directory for this system, disable Windows Authentication and enable Anonymous Authentication. Stop all ASM Core services and set their "Start Up" property to Manual; except for the ASM Administrative Service. Ensure the ASM Administrative Service is running and the "Start Up" property is set to Automatic. Using the registry key, disable the database upgrade via registry string `SkipDatabaseUpgrade = 1`
URL for External Users	The URL points to the server and virtual directory within the DMZ.

Configure a second web server within the DMZ to act as a reverse proxy server.

On this web server in the DMZ:

Create an ASM System that points to the same database as the internal ASM System.

During system creation, when prompted to update the database, select No
In the virtual directory for this system, disable Windows Authentication and enable Anonymous Authentication.
Stop all ASM Core services and set their "Start Up" property to Manual; except for the ASM Administrative Service.
Ensure the ASM Administrative Service is running and the "Start Up" property is set to Automatic.

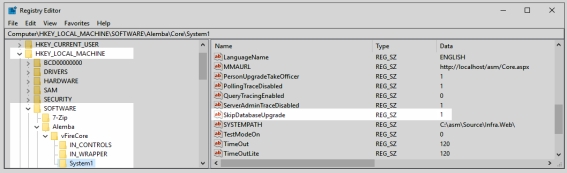

Using the registry key, disable the database upgrade via registry string SkipDatabaseUpgrade = 1

URL for External Users The URL points to the server and virtual directory within the DMZ.

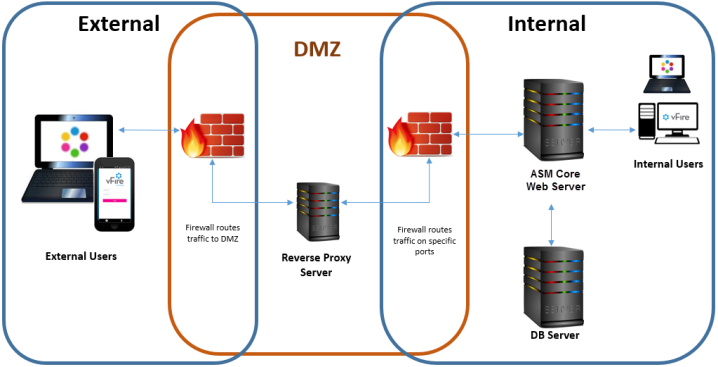

### Option 2: Set up a Reverse Proxy Server in the DMZ, Authentication Disabled


Internal network	Install the primary ASM System on the internal server. Do not enable Windows Authentication.
DMZ	Configure a reverse proxy server within the DMZ. On this server in the DMZ: Install IIS Create a virtual directory; disable Windows Authentication and enable Anonymous Authentication Configure IIS to redirect traffic to the ASM Core application server and virtual directory within the internal secure network.
URL for External Users	The URL points to the reverse proxy server and virtual directory within the DMZ.

Internal network

Install the primary ASM System on the internal server. Do not enable Windows Authentication.

DMZ

Configure a reverse proxy server within the DMZ.

On this server in the DMZ:

Install IIS
Create a virtual directory; disable Windows Authentication and enable Anonymous Authentication
Configure IIS to redirect traffic to the ASM Core application server and virtual directory within the internal secure network.

URL for External Users

The URL points to the reverse proxy server and virtual directory within the DMZ.

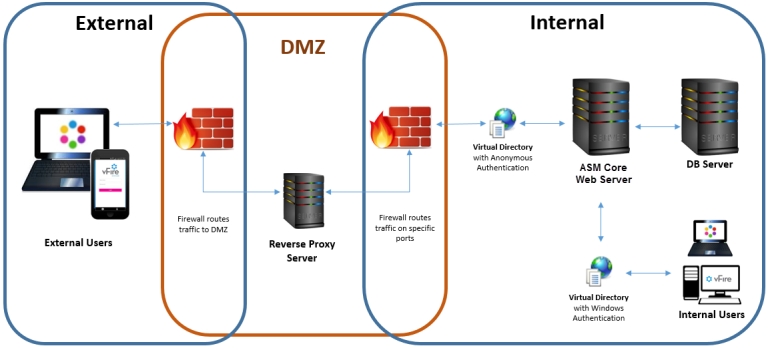

### Option 3: Set up a Reverse Proxy Server in the DMZ, Authentication Enabled

Internal network


Internal network	Enable Windows Authentication on the internal server's ASM System. On the internal server: Create a second ASM System that points to the same database as the primary ASM System. During system creation, when prompted to update the database, select No In the virtual directory for the new system, disable Windows Authentication and enable Anonymous Authentication. Using the registry key for the new system, disable polling of services via registry string `PollingDisabled = 1` Using the registry key for the new system, disable the database upgrade via registry string `SkipDatabaseUpgrade = 1`
DMZ	Configure a reverse proxy server within the DMZ. On this server in the DMZ: Install IIS Create a virtual directory; disable Windows Authentication and enable Anonymous Authentication Configure IIS to redirect traffic to the internal application server and the virtual directory that has Anonymous Authentication enabled
URL for External Users	The URL points to the reverse proxy server and virtual directory within the DMZ.

Enable Windows Authentication on the internal server's ASM System.

On the internal server:

Create a second ASM System that points to the same database as the primary ASM System.
During system creation, when prompted to update the database, select No
In the virtual directory for the new system, disable Windows Authentication and enable Anonymous Authentication.

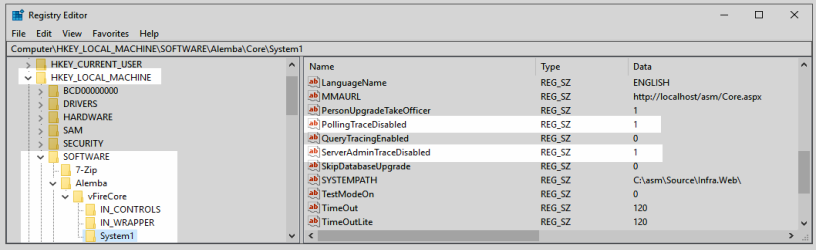

Using the registry key for the new system, disable polling of services via registry string PollingDisabled = 1
Using the registry key for the new system, disable the database upgrade via registry string SkipDatabaseUpgrade = 1

DMZ

Configure a reverse proxy server within the DMZ.

On this server in the DMZ:

Install IIS
Create a virtual directory; disable Windows Authentication and enable Anonymous Authentication
Configure IIS to redirect traffic to the internal application server and the virtual directory that has Anonymous Authentication enabled

URL for External Users The URL points to the reverse proxy server and virtual directory within the DMZ.
