# Part 3-Syncfusion Server User Management Server (UMS) Configuration

## User Management Server (UMS) URL

1. Open a new browser window/tab and navigate to the following url:

```url
http://<yourservernameaddresshere>/alembadashboardserver
```

{% hint style="warning" %}
You will need to replace \<yourservernameaddresshere> with the DNS server name of the app server where SF is installed.&#x20;

The DNS name needs to match the Subject Alternative Name (SAN) of the SSL certificate you selected in the IIS config, in this document, previously.
{% endhint %}

2. Enter the **UMS url.**&#x20;
3. Select **https** in the dropdown and enter the Alemba UMS url <mark style="color:red;">**without the https\://**</mark> at the beginning, as follows:

```url
<yourservernameaddresshere>/alembaums
```

4. Click **Proceed**

{% hint style="warning" %}
You will need to replace \<yourservernameaddresshere> with the DNS server name of the app server where Syncfusion Dashboard Server is installed.&#x20;

The DNS name needs to match the Subject Alternative Name (SAN) of the SSL certificate you selected in the IIS config, in this document, previously.
{% endhint %}

## Configure the User Management Server

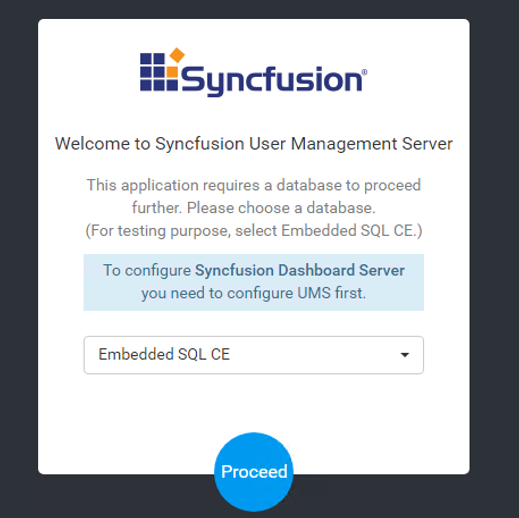

1. Select **Microsoft SQL** in the prompt below

<figure><img src="https://content.gitbook.com/content/hlW9jKl7dcDggHAPhNU9/blobs/hIUPcTnUSG6LHIOxVLZA/Screenshot%202023-06-01%20at%2011.02.26%20AM.png" alt=""><figcaption></figcaption></figure>

2. Click **Proceed**

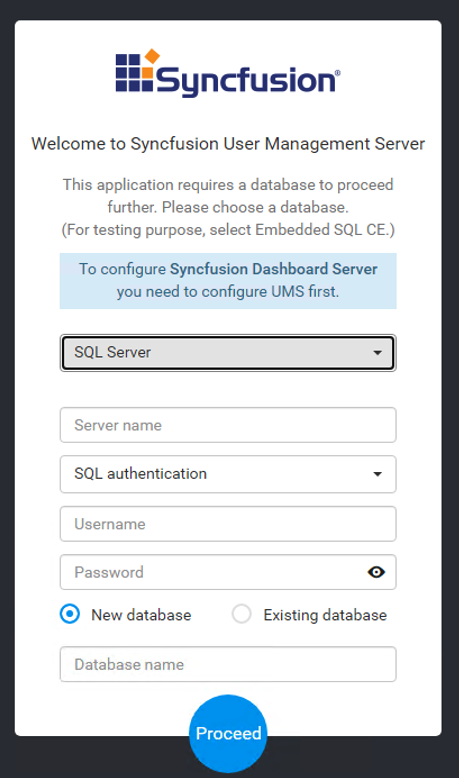

3. Enter the credentials for the Production SQL server.&#x20;

<figure><img src="https://content.gitbook.com/content/hlW9jKl7dcDggHAPhNU9/blobs/qflYnk5EpZnjCdaEaYWa/Screenshot%202023-06-01%20at%2011.04.49%20AM.png" alt=""><figcaption><p>Depending on numerous factors, you may either have to create a brand new DB, as per figure A below or use an existing DB as per figure B.</p></figcaption></figure>

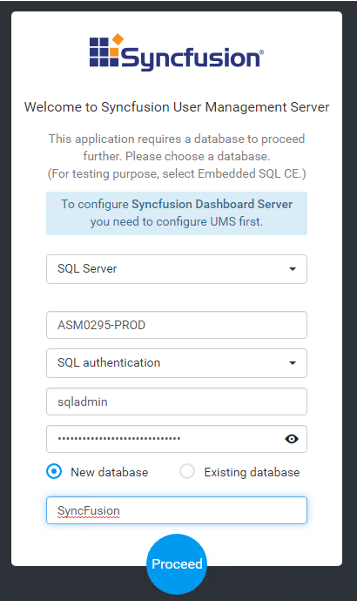

Figure A - Creating a New Database:

<figure><img src="https://content.gitbook.com/content/hlW9jKl7dcDggHAPhNU9/blobs/826ctpjBfdCHmXoXtIJ4/Screenshot%202023-06-01%20at%2011.23.07%20AM.png" alt=""><figcaption></figcaption></figure>

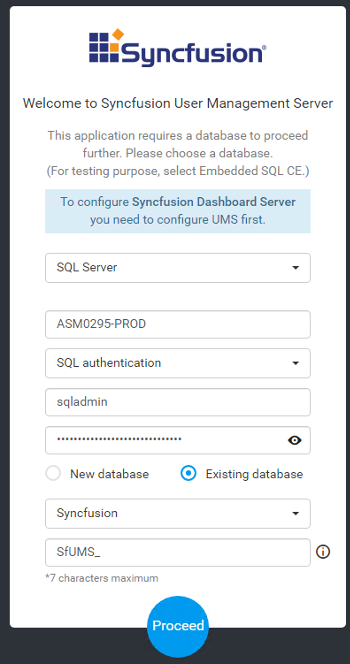

Figure B - Connecting to an existing Database:

<figure><img src="https://content.gitbook.com/content/hlW9jKl7dcDggHAPhNU9/blobs/P6V0g9kyfa5Xh65zilPZ/Screenshot%202023-06-01%20at%2011.25.04%20AM.png" alt=""><figcaption></figcaption></figure>

4. Click **Proceed**

## Configure Storage Options for the User Management Server

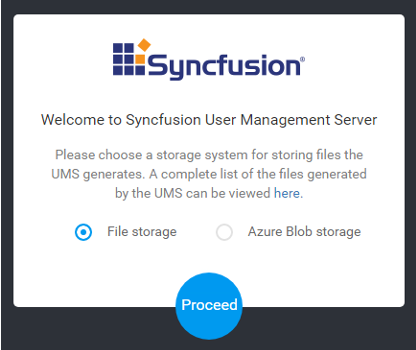

1. To configure your storage options, select **File Storage**
2. Click **Proceed**

<figure><img src="https://content.gitbook.com/content/hlW9jKl7dcDggHAPhNU9/blobs/6FLwcDDwW66qpJR78uty/Screenshot%202023-06-01%20at%2011.27.09%20AM.png" alt=""><figcaption></figcaption></figure>

## Create Master Accounts

You should now create the Master Admin user accounts for both the Dashboard Server, as well as the User Management Server.&#x20;

{% hint style="danger" %}
You must contact Alemba Support, your Account Manager or your Alemba Professional Service Consultant for the credentials if you are a cloud customer.
{% endhint %}

##
