URLs and Access Parameters

Use URLs to access the main application, the Self Service and Catalog Portals, the External Supplier Portal and other ASM Core interfaces.

Overview of ASM Core URLs

ASM Core URLs are used to access different interfaces, like the Self Service Portal, and also to perform complex functions such as launch searches, open incident forms, view service orders, and even to pre-populate fields on submission forms or search criteria windows, and then to submit those forms or searches.

Complex functions are performed through the URL by appending http query strings to the base URL.

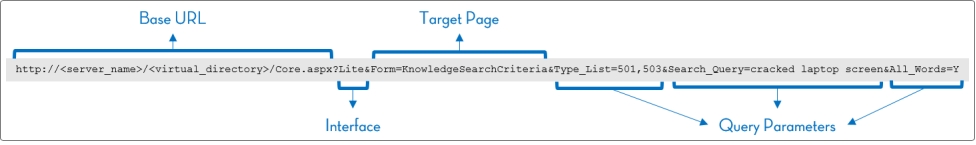

The URL structure consists of the base URL, the interface parameter, the target page parameter, and the query parameters.

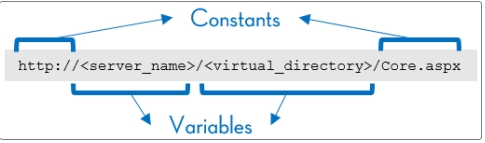

URLs are made up of constant and variable parameters. Some parameters vary from system to system while others are static values. The following convention has been used to denote parameters:

  • Variables within URLs are denoted within angular brackets.

  • Constants are denoted in the regular text without brackets.

Structure of the base URL

Example of a http query string:

http://<server_name>/<virtual_directory>/Core.aspx?Lite&Form=KnowledgeSearchCriteria&Search_Query=cracked laptop screen&All_Words=Y

When constructing URLs for use in ASM Core, note that:

  • The interface parameter must always be preceded by ?

  • All following parameters must be preceded by &

  • Parameters and their values are joined by =

  • Characters entered after = and before & are treated as a value and therefore can contain spaces

Here is an example of how these are strung together based on the example URL above.

To launch ASM Core

http://<server_name>/<virtual_directory>/Core.aspx

To launch the Self Service Portal

http://<server_name>/<virtual_directory>/Core.aspx?Lite

To launch the portal Knowledge Search Criteria page

http://<server_name>/<virtual_directory>/Core.aspx?Lite&Form=KnowledgeSearchCriteria

To launch the portal Knowledge Search Criteria page with the words “cracked laptop screen” in the Search Text field, and the All Words checkbox selected

http://<server_name>/<virtual_directory>/Core.aspx?Lite&Form=KnowledgeSearchCriteria&Search_Query=cracked laptop screen&All_Words=Y

API URLs

Admin

https://{host-name}/{core-system-name}/Alemba.Web/alemba/admin

Agent/User Role

https://{host-name}/{core-system-name}/Alemba.Web/alemba/api-explorer-choose

URLs and Access Parameters

Use base URLs to:

  • Access ASM Core

  • Access the Self Service Portal

  • Access the HTML Only Interface

  • Access the Catalog Portal

  • Access ASM Core through WSRP

Use http query strings for the Self Service Portal to:

  • Automatically Log into the Self Service Portal

  • Retrieve a Password

  • Change a Password

  • View a specified knowledge article, or access the search page for Knowledge Bank

  • View a specified incident, or access the search page for Incidents

  • View a specified request, or access the search page for Requests

  • View a specified service action or service bundle, or access the search page for Browsing the Service Request Catalog

  • View a specified service order, or access the search page for Service Order

Pre-populate search fields and automate searches in the Self Service Portal using http query strings for:

  • Knowledge Search

  • Incident Search

  • Request Search

  • Browse the Service Request Catalog

  • Service Order Search
