Alemba Service Manager On-Premise Architecture

Below are the main architecture diagrams you will need in planning your ASM System.

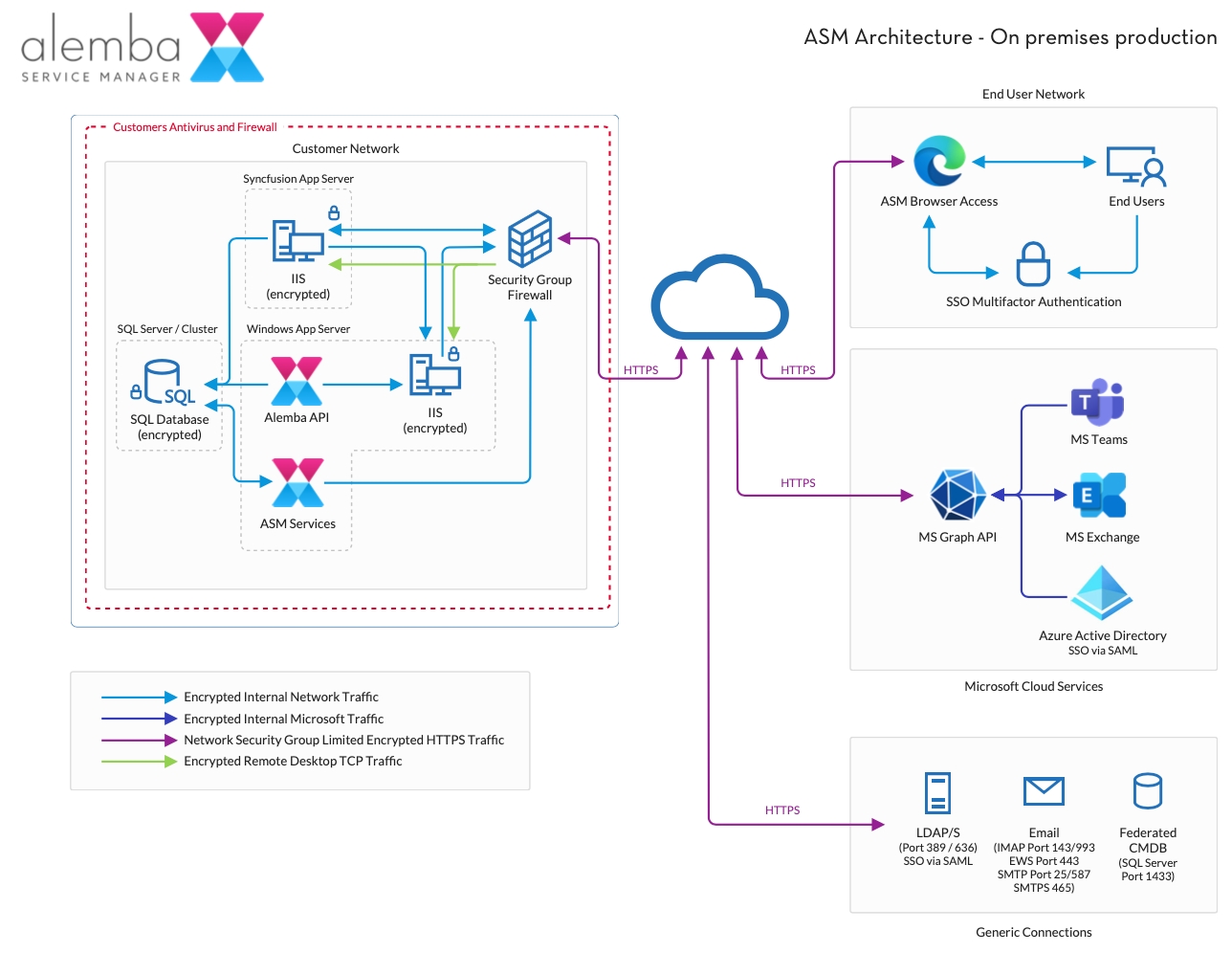

On Premise Production

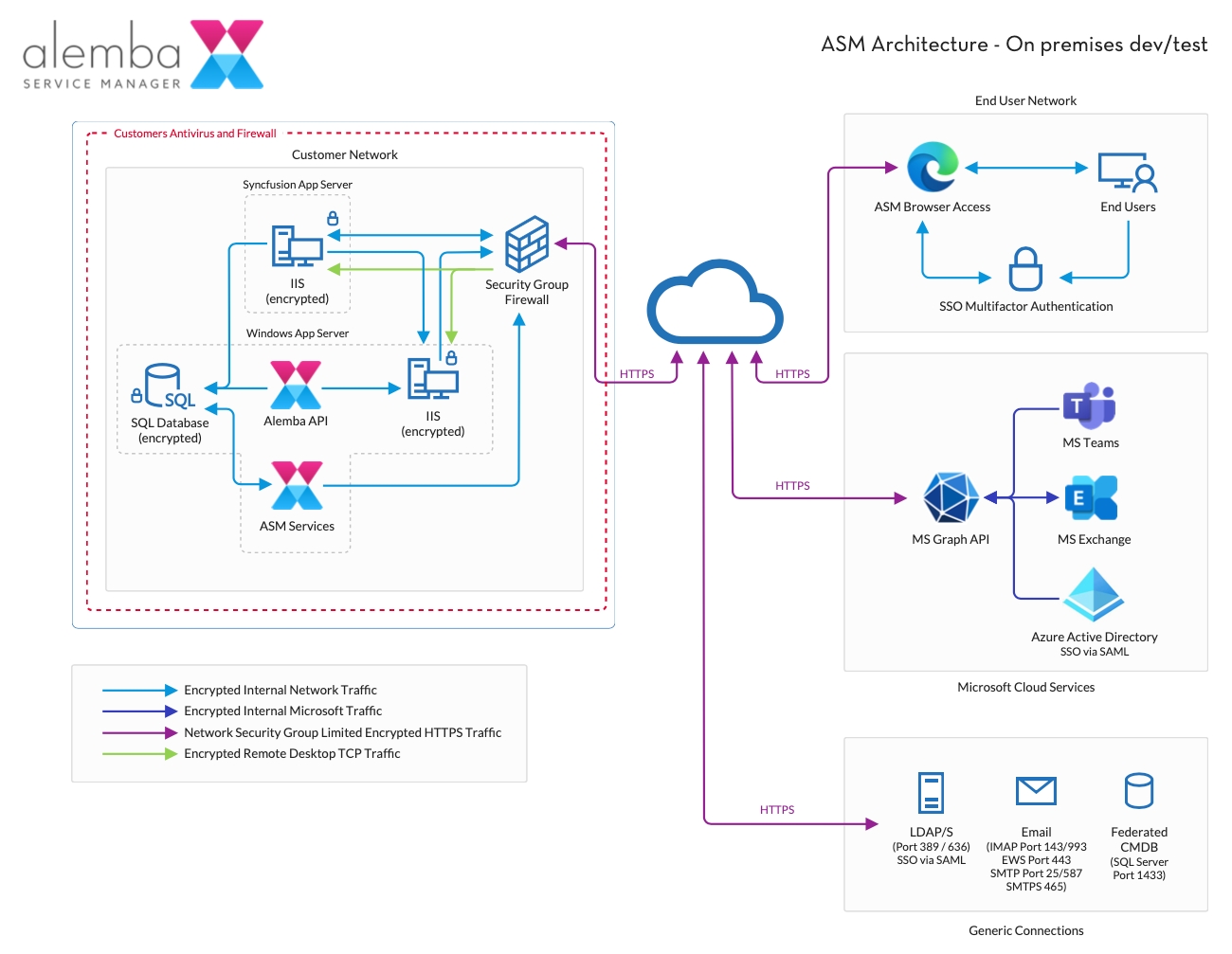

On Premise Dev/Test

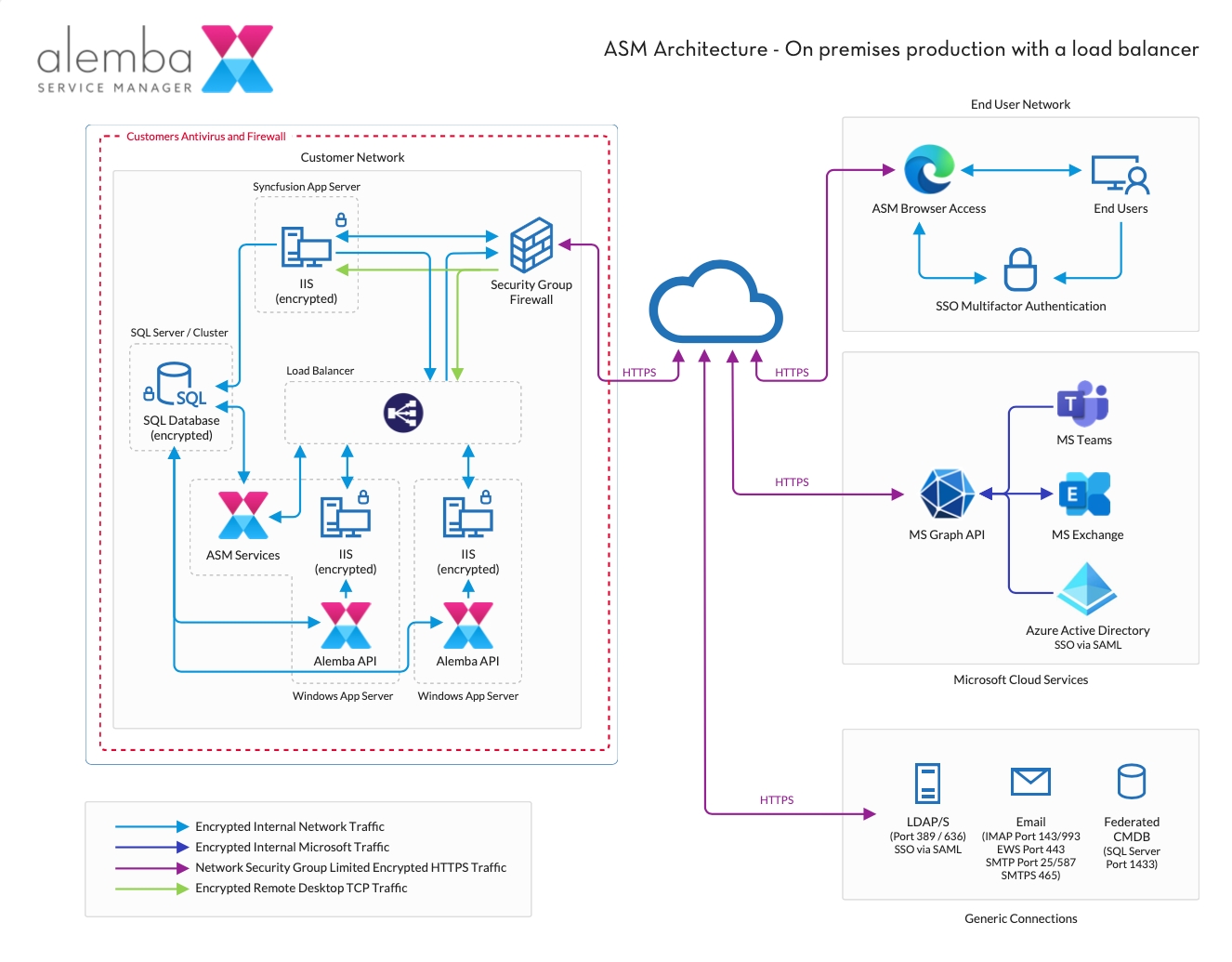

On Premise Production with a Load Balancer
