# On Premise Architecture Diagrams

High Level diagrams for On Premise implementations are below. Please note that we only support the SQL Database being on the same server as the ASM Application in a Non-Production Environment

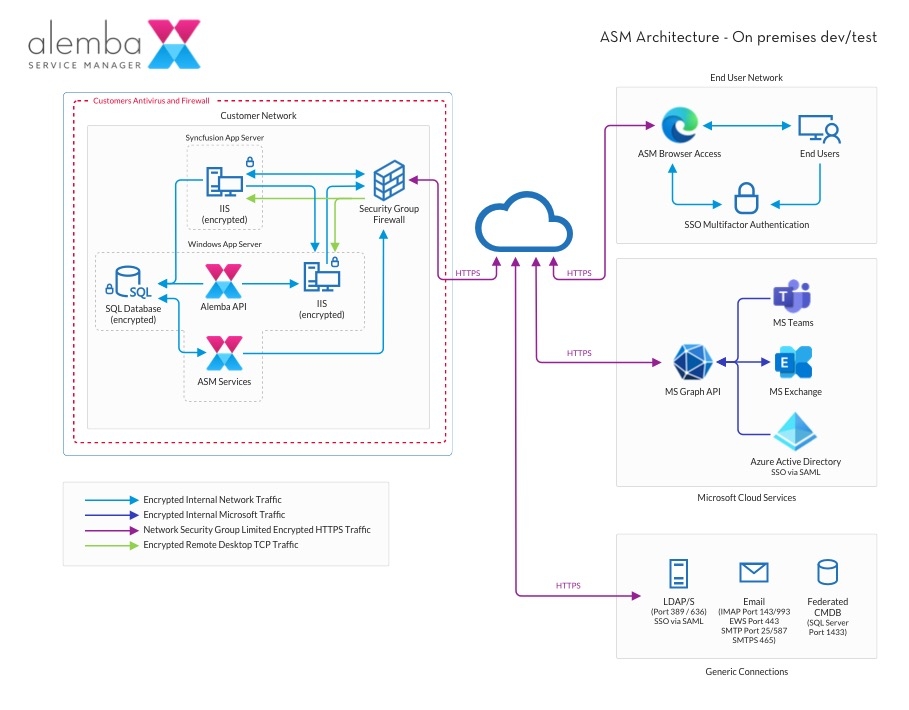

<figure><img src="https://content.gitbook.com/content/6Ckybwmt0tmi7y8MgYX4/blobs/tQHH13gsshODos8ON7rJ/Alemba-architecture-diagram-on-prem-test.jpg" alt=""><figcaption><p>Suitable for Development or Test Environments On Premise</p></figcaption></figure>

<figure><img src="https://content.gitbook.com/content/6Ckybwmt0tmi7y8MgYX4/blobs/myAYNtcw2Kunl67Vkfcr/Alemba-architecture-diagram-on-prem-prod.jpg" alt=""><figcaption><p>Suitable for Production Environments On Premise</p></figcaption></figure>

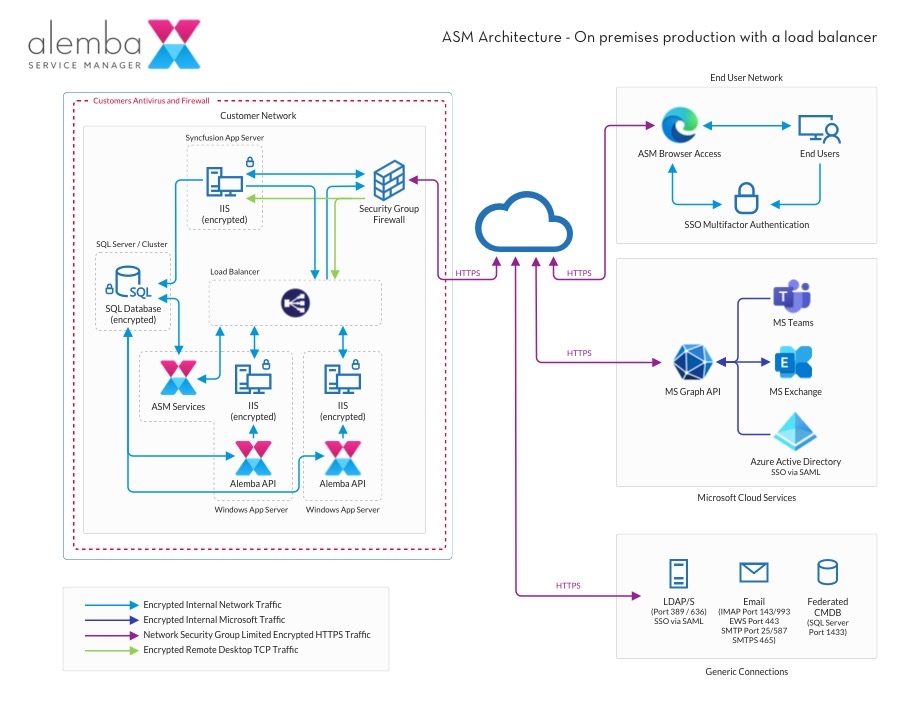

<figure><img src="https://content.gitbook.com/content/6Ckybwmt0tmi7y8MgYX4/blobs/4KDuonclugQqxW9pJH22/Alemba-architecture-diagram-on-prem-prod-loadbalanced.jpg" alt=""><figcaption><p>Suitable for Production Environments On Premise with Load Balancer</p></figcaption></figure>
